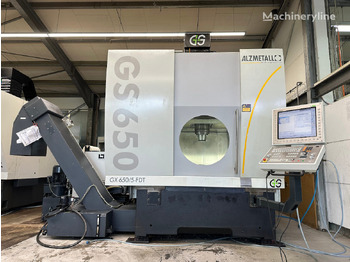

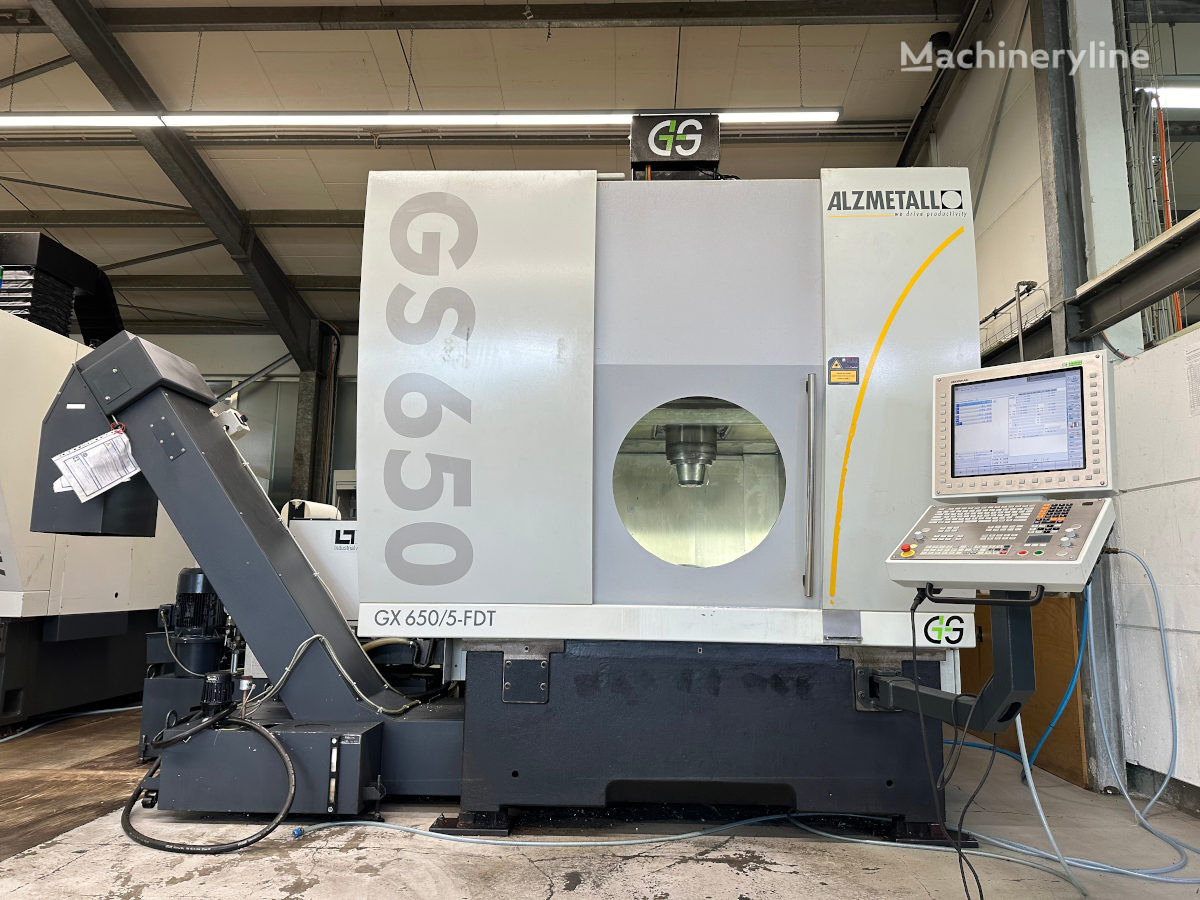

Utilaj prelucrare metal Alzmetall GS 650 - 5FDT

Gewerbering 6, D-82140 Olching

Technical Datasheet: show contacts%20Datenblatt_89-001349a.pdf

Alzmetall GS 650 - 5FDT

Control : Heidenhain iTNC 530

Speed : 18000 rpm

Movement X/Y/Z : 650/650/550 mm

Tool holder : HSK 63

____________

Description

In General

Control:Heidenhain iTNC 530

Travel X/Y/Z:650/650/500 mm

Speed:10,000 rpm

Interference circle swivel bridge:800 mm

Turning function:800 rpm

300 kg

Spindle

Technology:Motor spindle

Speed:10,000 rpm

Tool holder:HSK-T63

Turning function:Spindle clamping

NC-swivel table

A-axis:+/- 120°

0.001° resolution

Drive:Tandem

2x torque motors

C-axis:360°

0.001° resolution

Drive:1x torque motor

Clamping surface:470 mm

Turning function:800 rpm

Table load:max. 300 kg (500 kg)

Tool magazin

Technology:Chain magazine

Tool changer:Pick-up

Number of stations:63 pieces

Equipment

Turning function:800 U/min

Measuring systems:Direct in all axes

Chip removal:Chip conveyor

Coolant supply:IKZ system

40 bar

Tool measurement:Tool measuring probe

Workpiece measurement:Infrared measuring probe

Emulsion mist separator:Mechanical

Set-up mode:Electronic handwheel
