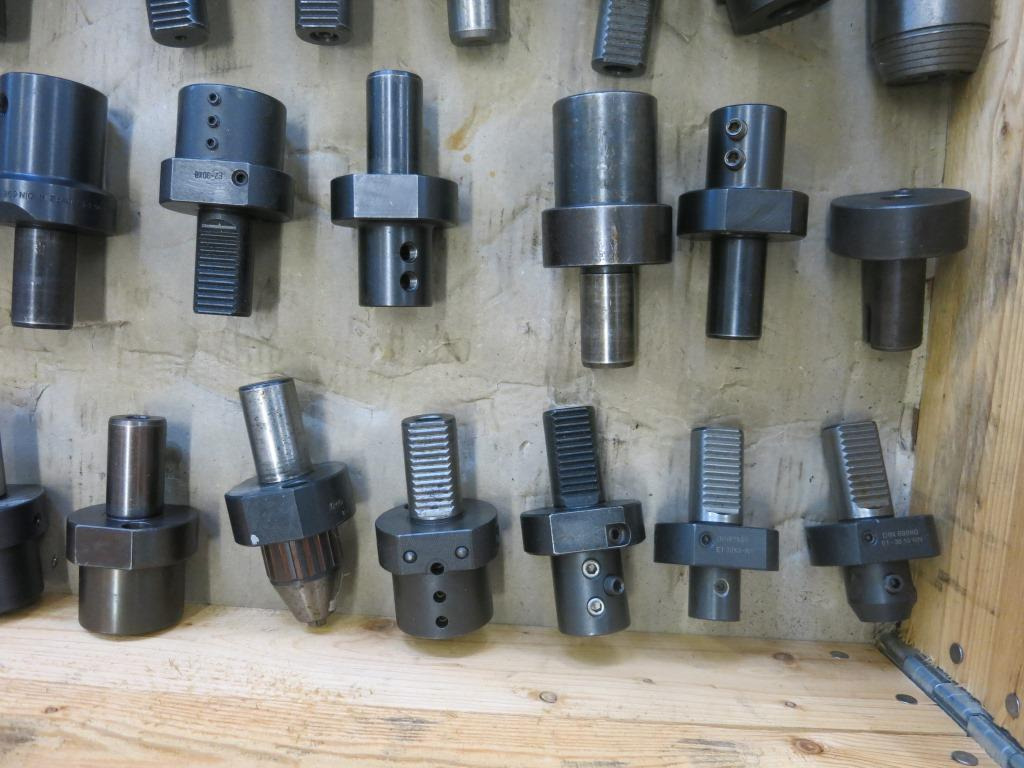

VDI 30
INDEX GS30
MAZAK Intergrex 30
DEPO Dynamics 1009
OKUMA LC 30 1
Mikron HEM 500 U
Corio - Blasting system / Strahlanlage
ABC Sial AF 30CF
405EUR
- ≈ 2 015 RON
- ≈ 429 USD
Fliseklipper + stenvogn Ravendo Klippebrede 30 cm
13EUR
- ≈ 64 RON
- ≈ 13 USD
Utilaj prelucrare metal Matec 30 HV
Publicat: 3l. 9zile.
Publicat: 3l. 9zile.
The seller didn't indicate the price
Do you want to know prices for the similar offers?
Deschideți catalogulGewerbering 6, D-82140 Olching
Technical Datasheet: show contacts%20Datenblatt_89-001351.pdf
Matec 30 HV
Control : Heidenhain iTNC 530
Speed : 18000 rpm
Movement X/Y/Z : 3000/825/800 mm
Tool holder : HSK 63
____________
Description
In General
Travel X/Y/Z:3,000/825/800 (700) mm
Speed:18,000 rpm
Tool holder:HSK 63
Spindle
Technology:Direct drive spindle
Speed:18,000 rpm
Torque:191 Nm
Tool holder HSK 63
NC-swivel head
Technology:Hirth-toothed swivel head
B-axis:+/- 95
Indexing:1°
Working table
Clamping surface:3,500 x 900 mm
Hole pattern:720 x M16 + 540 x 16F7
Tool magazine
Technology:Chain magazine
Tool changer:Double gripper
Number of stations:80
Tool diameter max.:130 (70) mm
Tool length max.:380 mm
Equipment
Measuring systems:Direct in all axes
Chip removal:Chip conveyor
Coolant supply: Internal coolant system
40 bar
Tool breakage control:LASER
Workpiece measurement:Renishaw Touch probe
Set-up mode:Electronic handwheel
Emulsion mist separator:2 pieces
mechanical
