Leasing de ACHIEVE New AP300-TDE European Version 【ACHIEVE】100% BRAND NEW !!!

Publicat: 9l. 25zile.

Publicat: 9l. 25zile.

Calculator de leasing

Taxă inițială

10%

20%

30%

40%

50%

Perioadă de leasing, luni

Rata de leasing: 10%

10%

15%

≈34 164EUR/luna*

Preţul inițial 34 164 EUR

* Calcul aproximativ.

Număr de referință

AICP003

Anul de fabricație

2024

VIN

AICP003

Noul

Stare

nouă

Data primei înmatriculări

2024-00-00

Greutate proprie

2300 kg

Culoare

albastru

Locația

China, China, 410003, Changsha, Room 513, Block 4, Shangming Commercial Center, No. 28, Fuyuan Rd(M), Kaifu District

Motor/transmisie

clasa de emisii

Euro 3

combustibil tip

diesel

puterea motorului

68 CP

motor

Deutz TD2.9-L4 (EKZ11501) 2200r/min, in-line

prizei de putere

presiune de lucru

8 MPa

Şasiu/Suspensie

numărul de axe

1-ax

ungere centrală

rezervor combustibil

260 l

Suplimentar

garanție

Mai multe informatii

【ACHIEVE】TOP CONDITION!!! ACHIEVE AP300-TDE European Version Of Concrete Pump New Product Trailer Mounted Concrete Pump

The AP300 piston pump is ideally suited for controlling shotcrete smaller than 30 mm, and the AP300 engineers designed and defined a completely new product based on the criteria used by customers in the European market. This machine has more power and a higher lightweight, and every detail has been thought through. The AP300 is easier to maintain than any previous model, requires less maintenance costs and is our most user-friendly design. In addition, ACHIEVE will be happy to explain to you additional advantages and questions about your individual requirements

1.Use industrial motion controllers to optimize fuel output.

2.The new engine technology of Deutz engines imported from Germany - clean and efficient is suitable for all the requirements of the Stage V "emission standard", obtained the clean emission certificate from the United States, with more power and higher delivery rate.

3.The power of the engine is perfectly matched to the power of the main pump, and the power output is more powerful.

4.Made in China

5.Optimized design of the hopper for efficient pumping. Good suction and easy to clean, safe and protected.

6.The wearing parts of the alloy material eye plate are used, and the usability is better.

Hydraulic outriggers, easy to operate, ensure stability

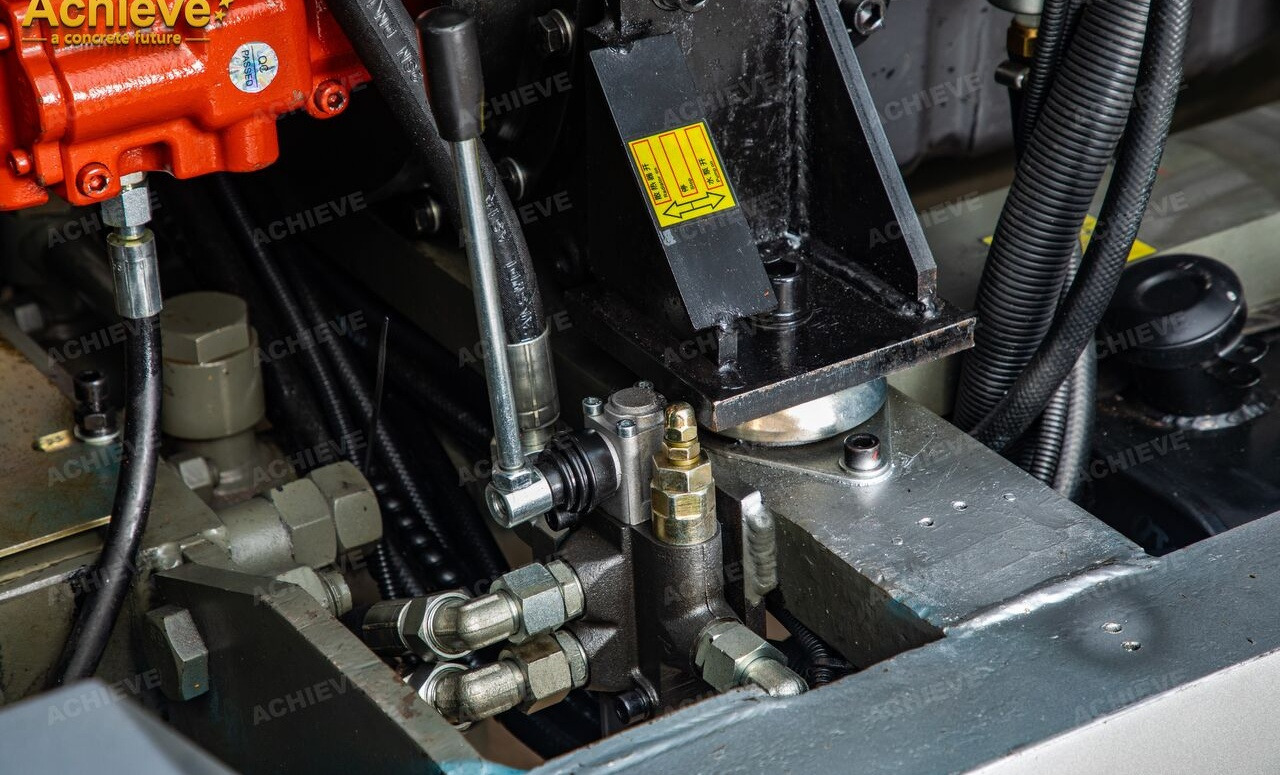

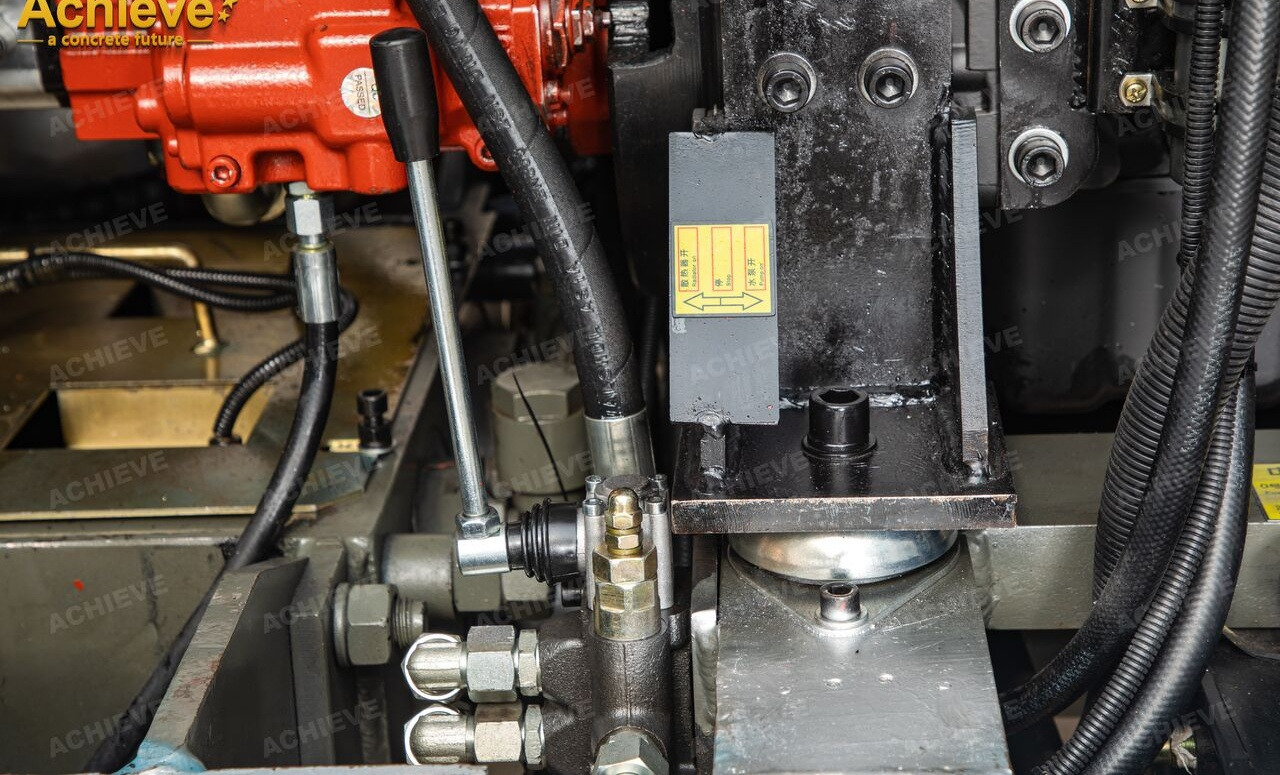

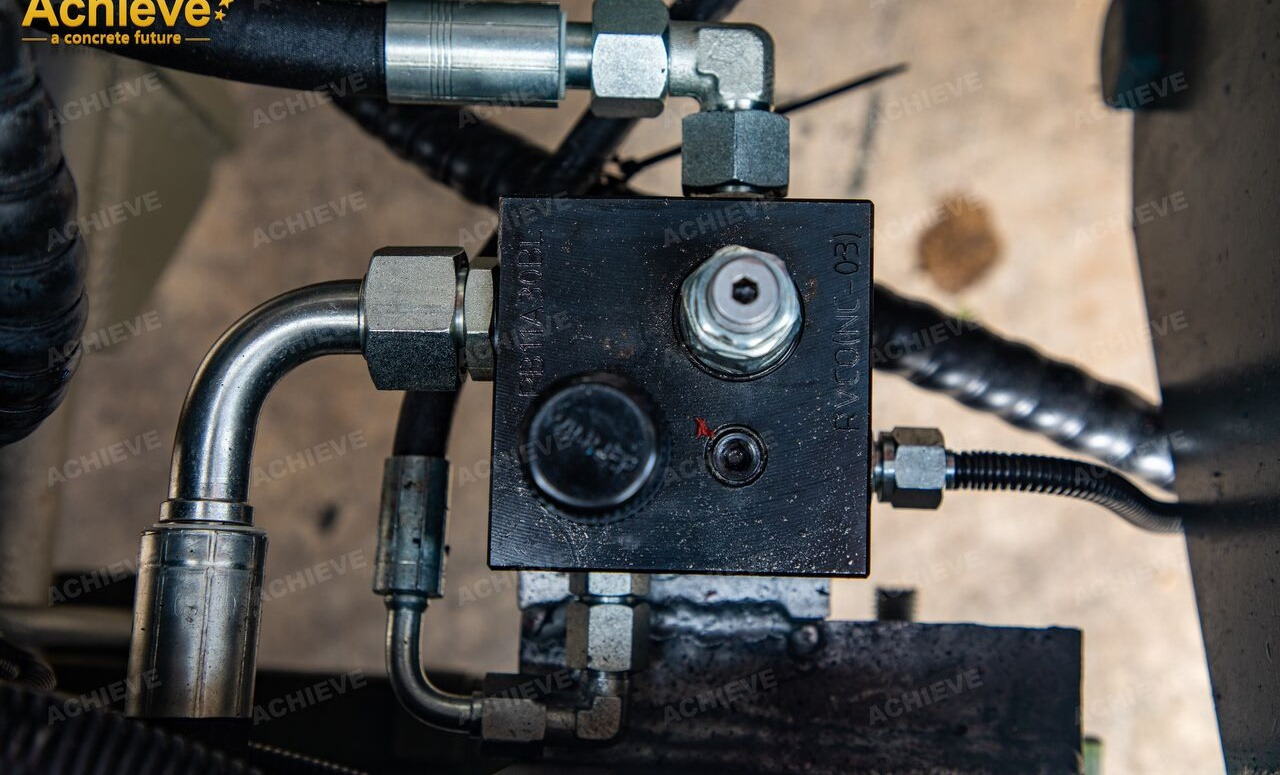

7.Hydraulic system circuit control, intelligent pumping mode and program control mode. Improve the accessibility of maintenance points.

Concrete trailer pump truck parameters

Specifications

AP300-TDE

AP400-TDE

AP500-TDE

Theoretical maximumthroughput

5-25 m³/h

5-30 m³/h

45m³/h

Maximum conveying pressure

80bar

70bar

80bar

Specification of conveying cylinder

160 ㎜

150㎜

180mm

Work schedule

800mm

1000㎜

1000mm

Maximum stroke per minute

Engine brand

Deutz, Köln-deutz

DEUTZ (imported from Germany)/Dalian diesel engine in China

Engine type

TD2.9-L4 (EKZ11501) 2200r/min

TD2.9-L4（EKZ11505) 2200r/min

TCD3.6L04/BF4M2012-09T3R

Power

50KW

55KW (3.7562 Horsepower）

74.4Kw/72Kw

Discharge

US EPA Tier 4

Euro 5/Country 3

Fuel tank volume

65L

98L

Volume of hydraulic tank

200L

Hopper structure

S valve

Hopper height

960㎜

1250mm

Hopper capacity

260L

300L

Outlet diameter

125 ㎜

125㎜

125mm

Maximum aggregate size

≤30㎜

≤40mm

Trailer

Single Shaft、electric controller

Weight

2300Kg

2600㎏

External dimensions

4600-1780-1720

4800-1850-1750

4800-1850-2200

The above data is based on experience and depends on the actual power output.

ENGINE INTRODUCTION

Engine type

TD 2.9 (HT)

TCD 2.9 HT

TCD 2.9 HP

Different cylinders

4. In-line

displacement

2.9

Highest nominal speed

Min-1

2600

Transpiration

Turbocharger

Turbocharger w intercooler

Power output

44.5 - 55.4

55.4

70-77

velocity

Min-1

2200-2600

2200-2400

2200

Highest torsional force

nautical mile

260 (320)

375

420

velocity

Min-1

1600

1400

1600

Minimum laziness

Min-1

900

weight

288
