Concasor cu impact nou Polygonmach VSI700/800/900 VERTICAL SHAFT IMPACTOR

1-Model : VSI 700 -CR

Max Feed : 35 mm. Hard Condition

Rotor Diameter : 760 mm. / Off Std. Rotor

Rotor Speed : 50-70 m / s.

Drive : 132 kW / 1500 rpm.

Capacity : 40-60 tons / hour 0-5 sand production at 5-32 mm feed.

Total Capacity : 80-120 tons / hour

Weight : 8,500 kg

Rotor Diamond Inserts (Two-row - 6 pcs Ductile Iron Tungsten Carbide Tipped)

Other Wear Parts (2 Molybdenum, 22 Chrome Alloy Castings)

Electric Motorized Hydraulic Unit (Used for Belt tensioning and Upper Body Lifting.)

One-sided maintenance platform with ladder.

Drive pulley for two separate speeds (1400 rpm - 1600 rpm)

Vibration sensor switch

Maintenance Crane

3- Model : VSI 800 -CR

Max Feed : 50 mm.

Rotor Diameter : 1000 mm. / Off Std. Rotor/Closed Rotor

Rotor Speed : 50-70 m / s.

Drive : 180 kW / 1500 rpm.

Capacity : 70-100 tons / hour 0-5 sand production at 5-50 mm feed.

Total Capacity : 100-150 tons / hour

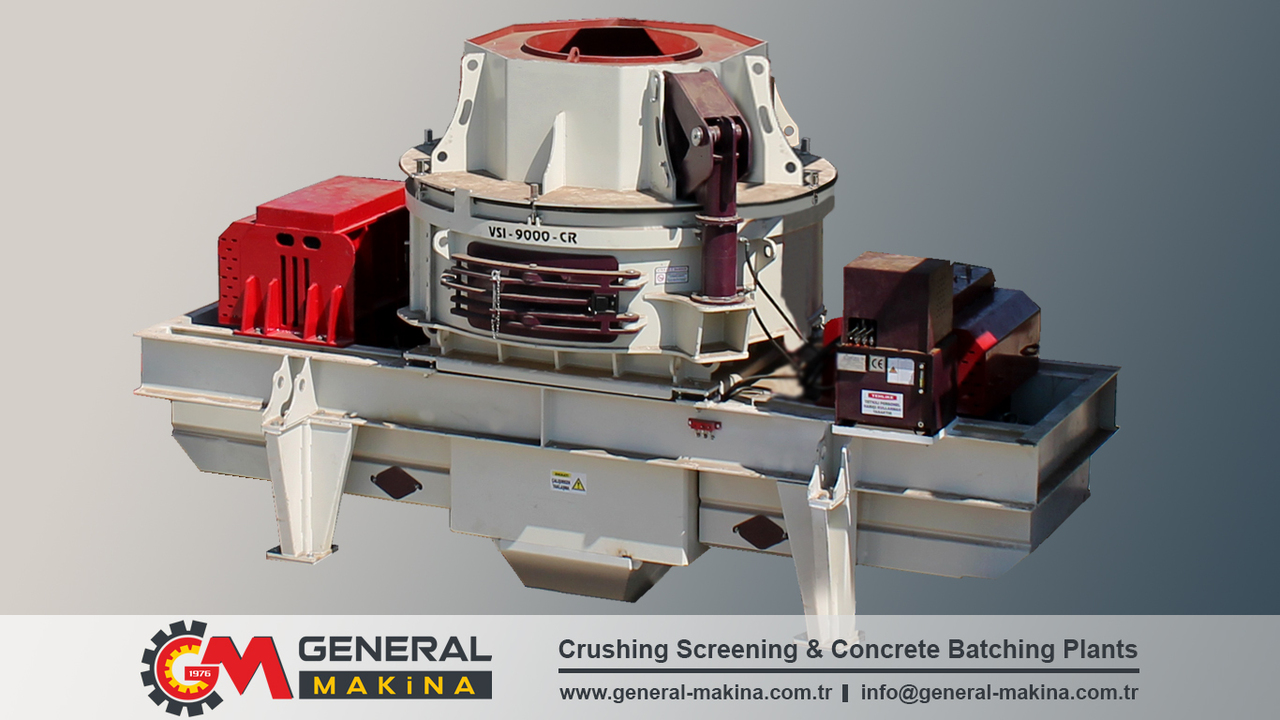

VSI-900-CR

1. Rotor Diamond Inserts (Two-row - 6 pcs Ductile Iron Tungsten Carbide Tipped)

2. Other Wear Parts (2 Molybdenum, 22 Chrome Alloy Castings)

3. Electric Motorized Hydraulic Unit (Used for Belt tensioning and Upper Body Lifting.)

4. One-sided maintenance platform with ladder.

5. Drive pulley for two separate speeds (1400 rpm - 1600 rpm)

6. Vibration sensor switch

7. Maintenance Crane

3-Model : VSI 900 -CR

Max Feeding : 45 mm.

Rotor Diameter : 900 mm. / CLOSE ROTOR

Rotor Speed : 50-70 m / sec.

Drive : 185 kW x 2/1500 rpm.

Capacity : 70-80 tons / hour 0-5 sand production at 5-15 mm feed.

Total Capacity : 230 tons / hour

Weight : 14.500 kg

Standard Equipments:

1.Electric motorized Hydraulic Unit (Used for Belt tensioning and Upper Body Lifting)

2. One-sided maintenance platform (galvanized grating and steps)

3. Drive pulley for two separate speeds (1400 rpm - 1600 rpm)

4. Automation control panel (Vibration sensor switch - Breaker feed control-working hours)

5. Maintenance Crane
